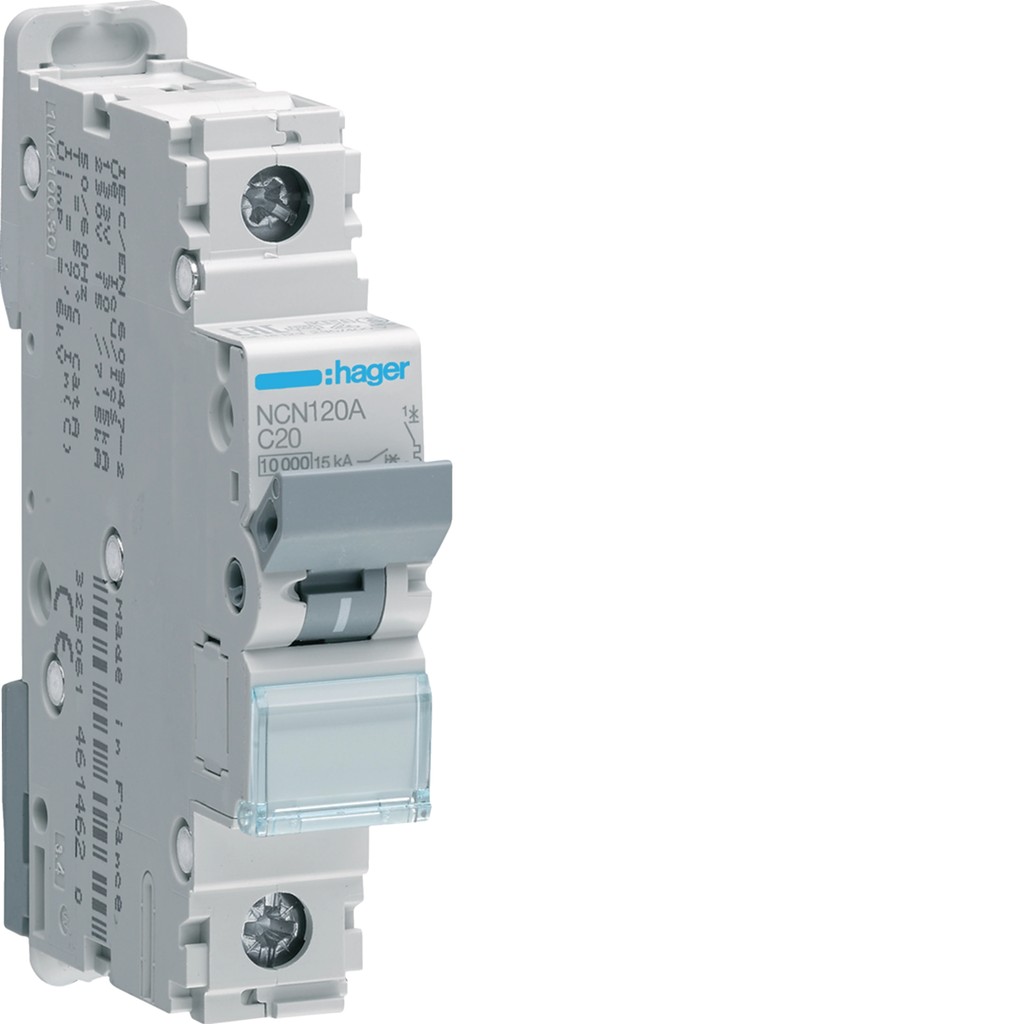

Hager NCN-Series MCB
| Brand | Hager |
| Series | NCN |
| Breaking Capacity | 15kA |
| Tripping Curve | C (5–10× In) |
| Voltage | 230/400V AC |
| Mounting | DIN rail 35mm |
| Standards | IEC 60898 |
Available Configurations
- 1P: 6A–63A (single-phase)
- 2P: 6A–63A (single-phase + neutral)
- 3P: 6A–63A (three-phase)
- 4P: 6A–63A (three-phase + neutral)
Key Features
- 15kA breaking capacity — high fault current protection
- C-curve tripping — general purpose circuits with moderate inrush currents
- DIN rail mount — quick snap-fit installation
- Compact design — 1 module per pole (18mm)
Applications
- Residential distribution boards
- Commercial power distribution
- Industrial circuit protection
- Lighting and socket circuits
Specifications
| Electrical / Distribution and Protection / Miniature Circuit Breakers | |
|---|---|
| Poles | 1P, 2P, 3P, 4P |
| Electrical Properties | |
|---|---|
| Rated Current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| Breaking Capacity | 15kA |
| Others | |
|---|---|
| Series Name | NCN |
| 17.5mm Unit Size | 1 |
